Ifanger Swiss-Drill
The perfect addition to the Ifanger portfolio.

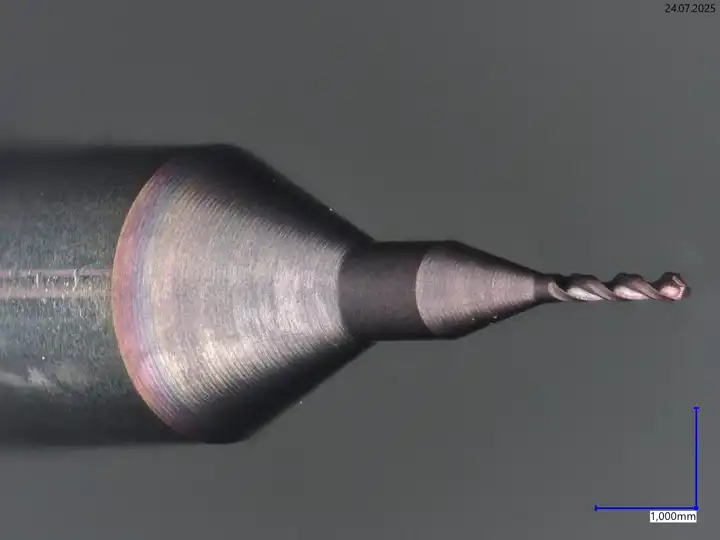

The new Ifanger Swiss-Drill micro tools line enables process-reliable micro drilling from Ø 0.20 mm up to drilling depths of up to 50xD - ideal as a supplement to Swiss-MicroTurn for complete cycles on Swiss-type lathes and machining centers.
This specially developed product line includes high-precision pilot drills, centering drills and drills for the most demanding applications in micromechanics.
Perfect complement to Swiss-MicroTurn
The Ifanger Swiss-DrillCut tools have been developed, among other things, as the perfect complement to our proven Swiss-MicroTurn internal turning tools. This combination enables complete machining cycles on sliding headstock automatic lathes:
- Pilot drilling with centering drills
- Pilot drilling with pilot drills
- Finish drilling with high-performance drills
- Internal machining with Swiss-MicroTurn tools
Deep drilling of small diameters
Particularly noteworthy is the suitability for deep drilling operations with the smallest diameters. The Swiss-DrillCut series enables:
- Precise drilling from Ø 0.20 mm
- Drilling depths of up to 18xD, one version even up to 50xD.
- Reliable machining of difficult-to-cut materials
- Minimal tolerances even with longer tools
Overview of the tools that are particularly suitable for machining CrNiCo alloys.
Interested in any detailed data?
Just click on the picture.
